Introducing The Zijin Longking ZL230E…

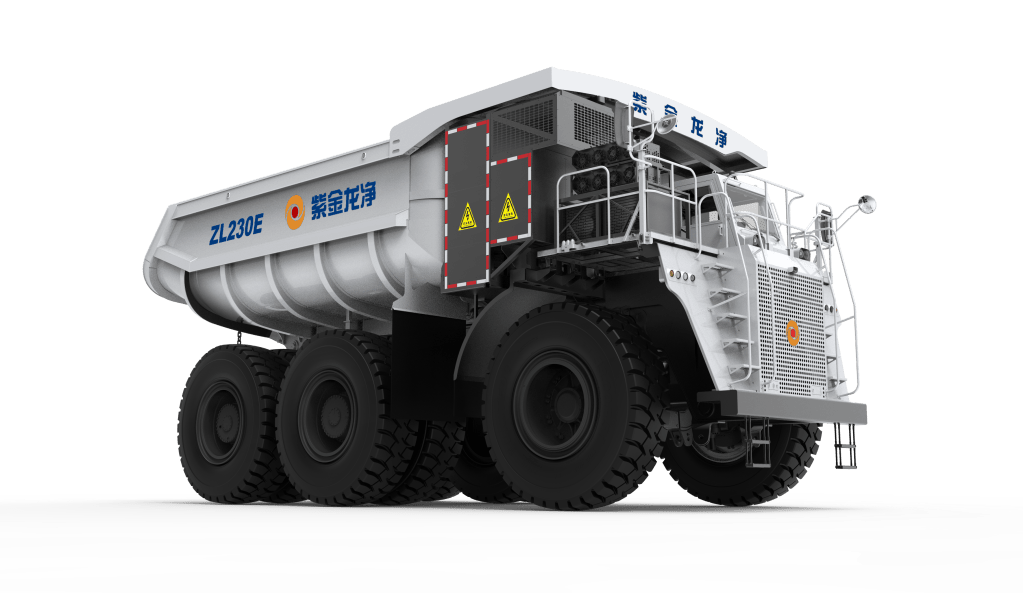

A large, modern dump truck model ZL230E, featuring a sturdy design with six oversized tires, a large cargo bed, and safety markings.

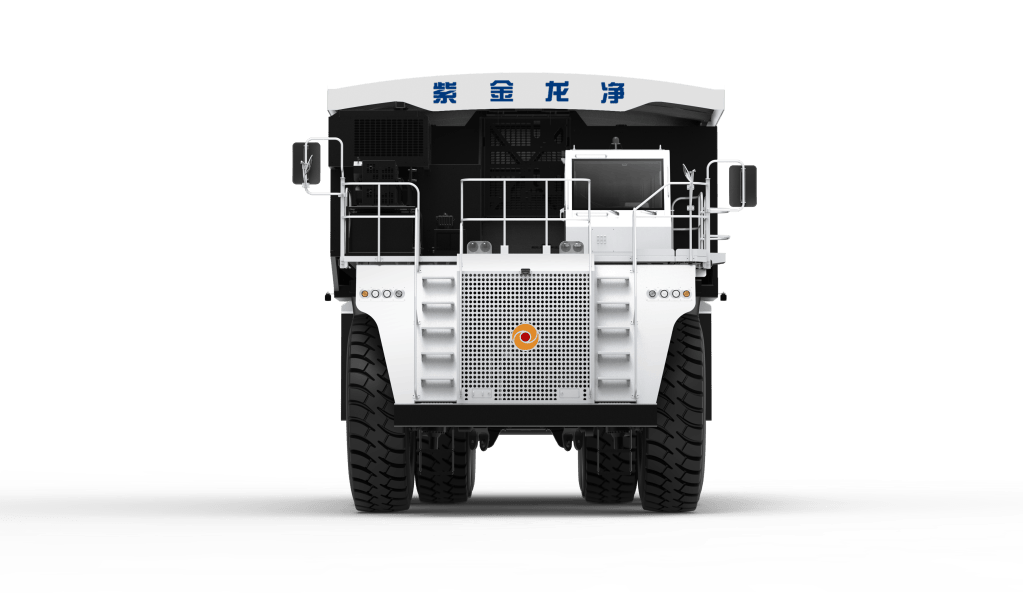

Front view of a large mining truck with prominent wheels and a white upper section featuring Chinese characters.

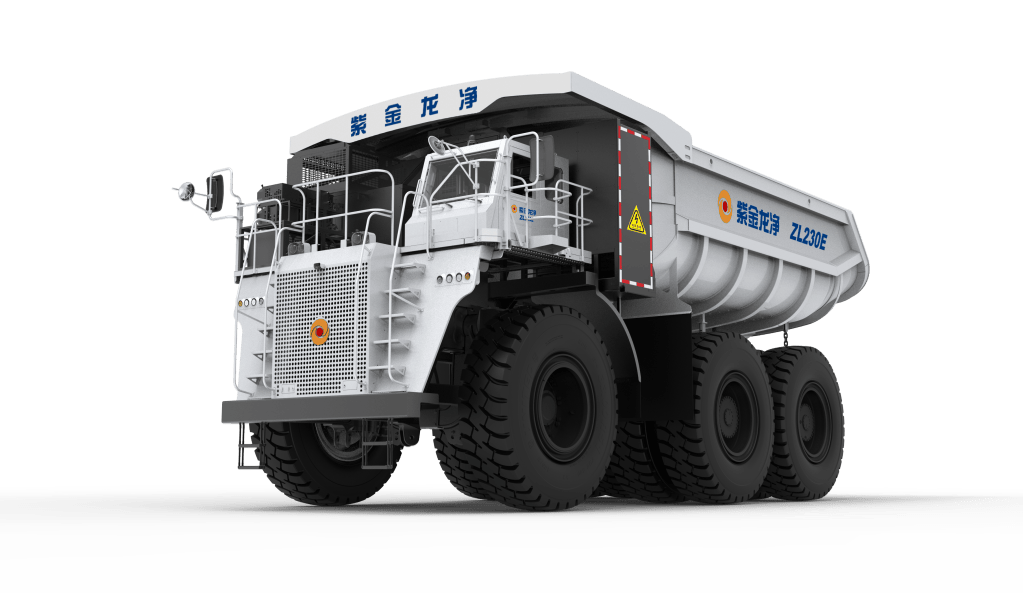

A large, heavy-duty dump truck with a white and gray exterior, showcasing its front view with massive tires and a flatbed designed for carrying loads.
  • Rated Payload: 220000 kg
  • Battery Capacity: 1418 kWh
  • Drive Configuration: 6×4
  • Maximum Gradeability: 25%
  • Turning Radius: 12.9m
  • Maximum Speed: 50km/h
  • Suspension System: Full Hydro-Pneumatic Suspension
  • Steering System: Full Hydraulic Steering
  • Tire Size: 33.00R51
  • Body Volume (m3): 105

Mine Electrification as an Integrated System

How it works

1

Mine Analysis

Review haul routes, gradients, loads, cycle times, climate, energy availability and fleet requirements.

2

Technical and Economic Model

Compare electric and incumbent fleets across energy cost, productivity, maintenance, infrastructure and lifecycle economics.

3

Charging or Battery Swap

Energy infrastructure designed around your mine.

4

Pilot Deployment

Introduce a controlled initial fleet with agreed performance measures.

5

Fleet Transition

Move to staged or full-scale deployment supported by energy infrastructure, training and service capability.

Powering Your Fleet

Charging and battery-swap systems can be configured around fleet size, duty cycle, available grid capacity, renewable generation and the operational requirements of each mine.

Mine Energy Systems

Charging

  • Claimed 20–80% charge time of 25 minutes
  • Compatibility with up to 18 simultaneous chargers

Battery Swap

  • Battery swapping in up to four minutes
  • More than 160 swap cycles per day
  • Up to 20 battery compartments

Servicing Your Fleet

Longking Australia is developing a local service, spare-parts and technical-support model for Australian deployments. Each pilot and fleet proposal will include a defined support plan covering commissioning, training, preventative maintenance, parts availability, technical response and warranty administration.

A Commercial Pathway to Fleet Electrification

Longking Australia combines equipment capability with Australian commercial and finance expertise. We work with mining clients and finance partners to evaluate purchase, leasing, project-finance and staged deployment structures.

  • Direct purchase
  • Equipment finance
  • Operating lease
  • Pilot-to-fleet structure
  • Energy-as-a-service
  • Charging-infrastructure finance
  • Battery ownership alternatives
  • Project funding
  • Total-cost-of-ownership modelling

Begin Your Mine Electrification Today…
